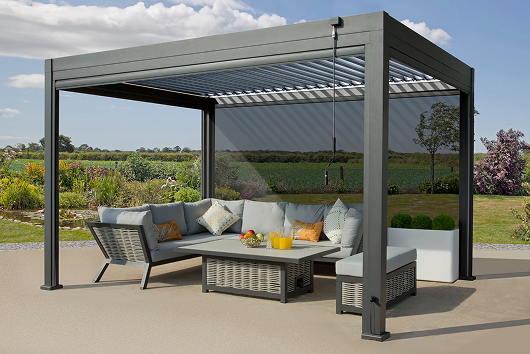

Installing your Riva Deluxe Aluminium Pergola, available in both 3x3m and 4x3m sizes, is simpler than it looks.

With the right preparation, a flat surface, and a helping hand, you can enjoy your outdoor space in as little as a few hours.

This guide breaks down the key steps, tools, and tips to make assembly straightforward and stress-free.

Before You Begin

Before getting started:

• Choose a flat, stable surface such as a concrete patio, decking, or paving.

• Allow at least two people for assembly.

• Read through the full manual once to familiarise yourself with the components.

• Avoid installation during strong winds or heavy rain.

Tip: It’s easier to complete assembly when all bolts are loosely fitted first, you can tighten everything securely once all parts are aligned.

What You’ll Need

You’ll find everything included in the Riva Deluxe kit, but here’s what you’ll need to have ready:

Included Components:

• Aluminium posts and beams

• Louvre roof panels

• Drainage fittings

• Fixings and bolts

• Brackets and end caps

Tools Required:

• Electric drill (6mm drill bit)

• Spirit level

• Ladder or step stool

• Spanner set

• Screwdriver

• Measuring tape

• Protective gloves and safety glasses

Step-by-Step Installation Guide

Step 1: Prepare the Area

Mark out your 4x3m space and ensure it’s clear and level.
Check ground type (decking, slabs, or concrete) to determine the best fixing method.

Step 2: Assemble the Frame

Connect the four corner posts to the base plates, ensuring they are upright and level.
Attach the top beams to form the pergola frame, tighten bolts lightly to allow for adjustments.

Step 3: Install the Roof Louvers

Lay out the louver panels in order.
Attach each one according to the direction of the pivot brackets.
Ensure the opening mechanism operates smoothly before tightening fully.

Step 4: Fit the Drainage System

Attach the gutter channels and downpipes as shown in the manual.
Confirm water flows correctly through the integrated drainage outlets.

Step 5: Secure the Pergola

Anchor each base plate to the ground using the appropriate fixings for your surface.
Use a spirit level to ensure perfect alignment before final tightening.

Step 6: Final Checks

Operate the louver rotation handle (manual or motorised, depending on your model).
Make sure all moving parts function smoothly and that bolts are securely fastened.

Tips for a Smooth Installation

• Keep all small parts (bolts, washers, caps) in a tray to prevent loss.

• Do not overtighten bolts during initial assembly, wait until structure is square.

• Check alignment frequently with a spirit level.

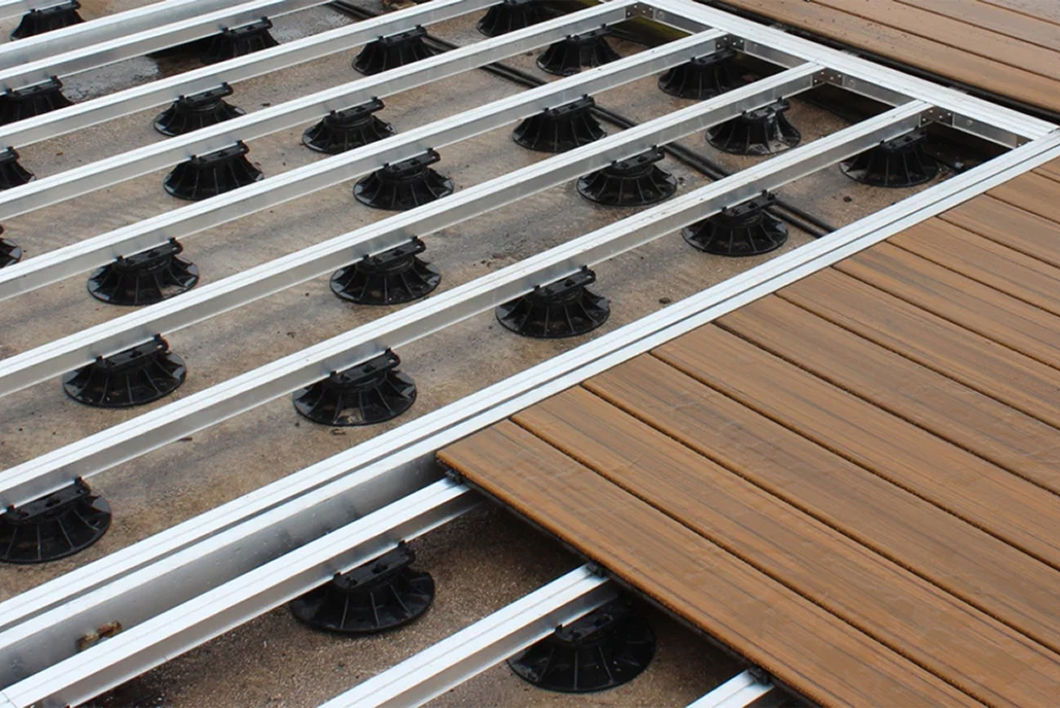

• For decking installs, ensure joists below can support the pergola’s weight.

Aftercare & Maintenance

The Riva Deluxe’s aluminium frame is weather-resistant and rust-free, but it’s still good practice to:

• Wipe down with mild soap and water every few months

• Clear the gutters occasionally

• Avoid harsh chemicals or abrasive tools

Download the Full Installation Manual

Prefer a step-by-step visual reference?

Download the Riva Deluxe 4x3 Pergola Installation Guide

Download the Riva Deluxe 3x3 Pergola Installation Guide

Need Expert Help?

If you’d like professional installation or advice on the best base fixing for your garden, contact our Patio Store team, we’re here to help you make the most of your outdoor space.
